How to Use Windows 8 Live Tiles in an Application

Use an API to update live tiles on the Start Screen in Windows 8

Tony Champion

September 19, 2012

15 Min Read

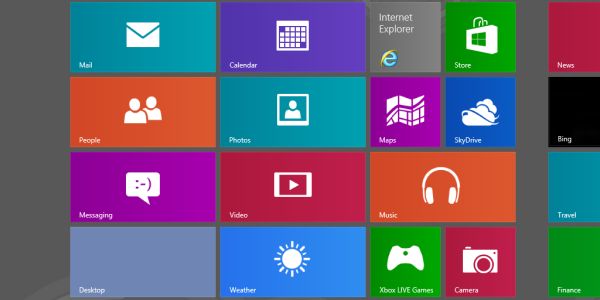

How to Use Windows 8 Live Tiles in an Application


RELATED: "How to Build Windows 8 Applications" and "How to Work with Local Notifications in Windows 8-Style Apps."

Windows 8's new Start screen and user experience has been the topic of many a tech conversation this year, as developers delve into building applications for thenew Windows platform. As you begin to get your head around building Windows Store applications (formerly known as "Metro-style" apps), an important feature not to overlook is live tiles -- a significant evolution away from the standard UI design practice of representing anapplication using a static icon image. The Windows 8 Start screen presents each application as a tile. Although an application's tile is initially a staticimage, Windows 8 exposes an API that lets you provide users with relevant, frequently updated information about your application via the tile. Using thisAPI, you can make your application's tile live using a combination of text and imagery that will keep the user informed and engaged with your application.

You might wonder why you need to implement live tiles in your application. The purpose of live tiles is to provide the user with "information snacking." Byproviding small pieces of information from your application, you can update the user without having to actually run the application itself. As an example,consider an email application. A tile that displays the number of new email messages lets the user get updated email information from a quick glance at thetile, saving the user the trouble of opening the email application. Tiles can be used similarly in a range of applications -- from social media to gamingto line-of-business apps.

Join me now as we explore Windows 8's live tiles and walk through examples of how to work with them. Note that this article was written on the Windows 8Release Preview; the information covered herein is subject to change when the final version of Windows 8 is released.

Anatomy of a Windows 8 Tile

Live tiles come in two sizes: square and wide (150 x 150 pixels and 310 x 150 pixels, respectively). A wide tile encompasses the same screen real estate astwo square tiles. Therefore, the extra 10 pixels in the width are there to cover the spacing between two square tiles sitting next to each other. Eachapplication is required to provide a square tile logo. This static image will be the default tile for your application unless an active live tile replacesit. The wide tile logo is optional. If a wide logo isn't supplied, the user will have only the option to show the tile in the square format. Even if youprovide both logos, the user is in control of how the tile is supplied. Therefore, when implementing live tiles, you need to create one for both sizes ifyou want to support both.

In addition to holding the tile's content, a live tile (and a static tile, too) can contain two additional pieces of information. The bottom left cornercan contain your application's branding: either a small logo or a short name. The bottom right corner can display a small badge. Badges are set using anadditional API; a discussion of them is beyond the scope of this article. It's important to keep these features in mind when you're determining tilelayouts and images to use so that you don't lose information behind the branding or badges.

Defining a Live Tile

There are three different types of live tiles: text-only, image-only, and a combination of text and images. For the text-only and image-only formats, thetiles are considered to be static and contain only a single view. Tiles containing a combination of images and text can either have a static view oranimate between two views in a peek tile. Peek tiles show a collection of images; the tile's content will "slide up" to show additional content below it.Regardless of the layout that you decide to use, each live tile is defined and implemented the same way.

To create a live tile, you use a predefined XML template. These templates are provided in the Windows 8 SDK and are non-extensible. Creating a customtemplate isn't an option; however, the SDK provides a large collection of templates for you to choose from. As of the Windows 8 Release Preview, there area total of 46 tile templates, with 10 of those defining square tile templates. For more information about templates and downloads, see the Windows Store Apps section in the Windows Dev Center.

Each tile template follows the same XML scheme. It contains all the nodes allowed by that template; modifying the structure results in an error message.Listing 1 shows an example of a wide live tile that contains both images and text.

Listing 1: XML for a Wide Live Tile that Contains Images and Text

                        Text Header Field 1      Text Field 2



For each node that's listed in the binding, you can enterthe appropriate text for your tile. Depending on the tile, you can have as many as 10 text entries. The font size and placement for each text line isdetermined by the template. Each template has right-to-left (RTL) language support and will automatically adjust layouts for those languages. In an node, you can define the image source and an alternate text that's displayed when you mouse over the image. Some live tiles contain as manyas six distinct images. The multiple-image support affords the tile a great deal of flexibility in its presentation.

Hello, Live Tile

Before diving into creating live tiles, the first thing you need to look at is how to define the static tile. In Visual Studio 2012, create a new WindowsMetro–style application using the Blank App (XAML) template in C#. There are two areas of interest in the Solution Explorer to look at first. The first isthe Assets folder that's created, which contains a group of default images. Logo.png is a 150 x 150–pixel image that's used for the default square tile.The image that's used for the application's tile is defined in the application manifest. Open the application manifest by double-clicking thepackage.appmanifest file located in the project's root directory. The Application UI tab contains a Tile section that lets you define the default tilesettings, as shown in Figure 1.


Figure 1: Defining Default Tile Settings

For our purposes in this article, the only two items you need to familiarize yourself with are Logo and Wide logo. You'll notice that the Wide logo property is blank by default. In order for your application to support wide tiles, you have to add a valid 310 x 150–pixel image to yourproject; enter the image's path in the Wide logo text area. The other options in this section are for you to define the branding of the tile,including the branding logo or name that appears on the bottom left corner of the tile.

To see the default tile in action, run your application in the debugger (F5 is the shortcut for this). After your application loads, return to the Startscreen, and you'll see that a new tile was added for your application. The tile should appear similar to the image shown in Figure 2.


Figure 2: Default Tile Example

Although this isn't avery inspiring tile, it does work as a placeholder, letting you create your base tile and avoid the need to generate an image, so that you can build theapplication. However, until you create a live tile, the default tile is what your users will see, so it's worth your time to make the default tile look abit more appealing than a big white X on a black background.

Creating a Live Tile

Now that you know how the default tile is defined within the application, it's time to look at how your application can update the tile. The UI for theexample is a simple form that you'll implement throughout this article. Figure 3 shows the final UI, and Listing 2 shows the full XAML for the page.


Figure 3: Tile Application UI

Listing 2: XAML for the Tile Page

    x:Class="TileExample.MainPage"    IsTabStop="false"    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"    xmlns:local="using:TileExample"    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"    mc:Ignorable="d">                                                                                        Tile Sample                            Text 1:                                                        Text 2:                                                        Tag :                                                        Enable Queueing:                                                        Expire in 5 min:



Listing 3 shows the complete C# code for all the examples in this article.

Listing 3: C# Code for Tile Application

private void btnTile_Click(object sender, RoutedEventArgs e){    var tileContent = TileUpdateManager.GetTemplateContent(TileTemplateType.TileSquareBlock);    var tileLines = tileContent.SelectNodes("tile/visual/binding/text");    tileLines[0].InnerText = txtLine1.Text;    tileLines[1].InnerText = txtLine2.Text;    var notification = new TileNotification(tileContent);    if (!String.IsNullOrEmpty(txtTag.Text))    {        notification.Tag = txtTag.Text;    }    var updater = TileUpdateManager.CreateTileUpdaterForApplication();    updater.EnableNotificationQueue(cbQueue.IsChecked.Value);    if (cbExpire.IsChecked.Value)    {        notification.ExpirationTime = DateTime.Now.AddMinutes(5);    }    updater.Update(notification);}private void btnClear_Click(object sender, RoutedEventArgs e){    var updater = TileUpdateManager.CreateTileUpdaterForApplication();    updater.Clear();}




Interaction with the tile API is handled through the TileUpdateManager class. TileUpdateManager and the rest of the tile API are located in theWindows.UI.Notifications namespace. The first step in creating a live tile for your application begins with retrieving a valid tile template. ThebtnTile_Click event handler is where you'll generate the live tiles. The API provides a method for retrieving any of the supported templates through theTileUpdateManager.GetTemplateContent() method, by passing in an enumerator TileTemplateType, as shown in the following example:

var tileContent = TileUpdateManager.GetTemplateContent(TileTemplateType.TileSquareBlock);

The method will return an XML document containing XML code that represents the template. It's important to note that it isn't necessary to use the API toretrieve the XML content. The content can be generated from any source as long as its schema is correct.

After the template has been retrieved, you can modify the nodes to populate the live tile with relevant information. Our example here uses theTileSquareBlock tile, which contains two text nodes. Populate the InnerText of the two text nodes with the contents of the first two TextBlocks in our UI,txtLine1 and txtLine2:

var tileLines = tileContent.SelectNodes("tile/visual/binding/text");
tileLines[0].InnerText = txtLine1.Text;
tileLines[1].InnerText = txtLine2.Text;

With the updated XML document completed, you can create a new TileNotification object by passing in the modified XML document into the constructor:

var notification = new TileNotification(tileContent);

The final step is to create a TileUpdater for your application. This is accomplished by using the CreateTileUpdaterForApplication() method of theTileUpdateManager. Calling the TileUpdater's Update() method with the new TileNotification will update your application's live tile:

var updater = TileUpdateManager.CreateTileUpdaterForApplication();
updater.Update(notification);

If you haven't already done so, you'll need to create an empty event handle for btnClear_Click before you run the application. After this has been created,the application should successfully compile and run. Before you try to create a live tile, take a moment and return to the Start screen. The applicationwill add a tile to the Start screen the first time the app is run in the debugger. The tile should have the default look of a white box and X on a blackbackground. Returning to your application, on the form fill in some text for Text 1 and Text 2, then click the Submit Tile button. One more trip to theStart screen, and you'll see that your application's tile has been updated with the live tile that you just created.

Making the Most of Your Tiles

Now that you've created a live tile, the fun doesn't stop there. There are a few features that are worth knowing about so that you can fully take advantageof live tiles. The most important of these features is notification queuing. Updating your application's live tile can be a very effective way tocommunicate with the user, but what happens when you have more than one thing to communicate? The tile API allows an application's tile to have up to fivelive tiles at any one time. The Start screen will automatically rotate through the available tiles.

Typically, tiles are added in the order that they're received. Once five tiles have been received, the oldest one will be replaced with the next tile. TheTileUpdater class exposes a method to enable or disable queuing. By default, notification queuing is disabled. The following line will enable queuing basedon the IsChecked property of the cbQueue CheckBox and should be added to your application immediately following the code that creates the updater object:

updater.EnableNotificationQueue(cbQueue.IsChecked.Value);

Now run your application again and add a new tile with the Enable Queuing option selected. Your application's tile will now have two tiles that will berotated through.

One thing to consider when using live tiles is that you want the tile to show only relevant information. For instance, if your application pushes eventreminders as live tiles, you wouldn't want the reminders to still show on the tile after the event is over. Imagine a user's disappointment when she getsexcited about her favorite band coming to town only to find out that the concert was the night before. Luckily for your concert-going user, the tile APIhas a couple of features that will help to prevent such a tragedy from occurring.

The first option you have is to set an expiration time on the TileNotification by setting the ExpirationTime property. When this property is set, the tilewill be removed when the expiration time is reached. If queuing is enabled, the tile will simply be removed from the rotation. If queuing isn't enabled orif there's only a single tile in the queue, the tile will revert back to the default tile. You can test this by adding code to check for the value of thecbExpire CheckBox. The following code will expire the tile five minutes after it's created:

if (cbExpire.IsChecked.Value)
{
    notification.ExpirationTime = DateTime.Now.AddMinutes(5);
}


An additional update option is to set a Tag for the TileNotification. By identifying a Tag value, you can update that specific tile from the queue. Forinstance, if you set the Tag value to "Concert", the next time you submit a TileNotification with that same Tag, the updated tile will replace the originaltile. The following code will add the txtTag.Text value to the TileNotification when it's created. The TileNotification will produce a runtime error if youset the Tag property to an empty string, so it's important to test the value. If you enable queuing, you'll see that using the same tag will replace theprevious tile instead of adding a new one to the rotation.

if (!String.IsNullOrEmpty(txtTag.Text))
{
    notification.Tag = txtTag.Text;
}


One last option you have for removing a live tile is to remove all the live tiles for your application. The API currently doesn't support removing aspecific tile -- therefore, it's an all-or-nothing approach. Removing the tiles from your application is as simple as calling the Clear() method from theTileUpdater class. By wiring the btnClear_Click event using the following code, you'll be able to clear all the live tiles by clicking the Clear Tilesbutton. Your application will return to the default tile that's defined in the package manifest.

private void btnClear_Click(object sender, RoutedEventArgs e)
{
    var updater = TileUpdateManager.CreateTileUpdaterForApplication();
    updater.Clear();
}


Mechanisms for Updating Your Tiles

This article demonstrates how to update your application's tile directly from the application. However, there are times when this isn't the optimalsolution. For instance, you might want a mail application to display the number of new email messages. If you're only updating the tile from within theapplication and it isn't currently running, it won't be able to update the tile. Fortunately, there are several approaches that you can take to get aroundthis problem. Although this article won't dive into these approaches in detail, they're worth knowing about.

The first option at your disposal is to create a scheduled tile update to post at a future date and time. The tile API exposes a ScheduledTileNotificationclass that's nearly identical to the TileNotification class described earlier -- except for the addition of a DeliveryTime property. The TileUpdater classhas an AddToSchedule() method that will let you add the notification to be posted at the DeliveryTime. In addition, you can review and remove schedulednotifications through the GetScheduledTileNotifications() and RemoveFromSchedule() methods of the TileUpdater.

With Metro you have two options for updating tiles remotely. The TileUpdater has a StartPeriodicUpdate() method that lets you define a URI to query and afrequency in which to query the URI. The URI must return a correctly formatted XML template. This polling approach lets your tile present relevantinformation to the user even if the user hasn't run your application for an extended period of time.

A similar approach is to use the Windows Push Notification Service (WNS) to push updates to your users' machines. The WNS lets your application subscribeto a remote service. When the service sends updates to the WNS, they're sent to all subscribers. A major benefit of this approach is that it lets youdeliver notifications whenever necessary, making them timely and removing the need and overhead of constant polling.

Wrapping Up

The Windows 8 Start screen brings a unique opportunity to application developers. It lets you present timely and useful information to users withoutrequiring users to open your application. This not only keeps users informed but also acts as a reminder about your application and can help promotefrequent usage. If you're interested in learning more about the live tiles API beyond what I've covered here, refer to the documentation in the Windows Dev Center.

Tony Championis a Silverlight MVP and owner of Champion DS, creating custom solutions on Microsoft platforms. He is currently authoring his first book on Windows 8 andis an active speaker and blogger.
